Download NLIS Devices Purchased

Download NLIS Devices Purchased

This article outlines the steps required to use StockMate to download the Devices Purchased detail from the NLIS database to StockMate.
Some businesses will choose to download this detail whenever NLIS tags are purchased, while others may choose not to use this function at all.
Info
There are two primary reasons a business may choose to download Devices Purchased.
  1. To link the NLIS ID to the EID/RFID immediately.
    When the device is applied to an animal in future, both values will be present in StockMate even if only the EID is scanned or if only the NLIS ID is typed. This can be particularly helpful in future in the case of replacing a non-scanning NLIS device.
  2. To associate a Visual Tag with a NLIS device immediately.
    For businesses that purchase NLIS devices with a linked Visual Tag, the Devices Purchased download process allows the user to record Visual Tag information against each device immediately. When the device is applied to the animal in future, the Visual Tag information is populated without having to be manually typed.

Download - Devices Purchased

  1. Select NLIS, Devices Purchased, Download.

  2. Select NLIS Search Criteria, Load.
  3. Select required records, Next Step: Import into StockMate.

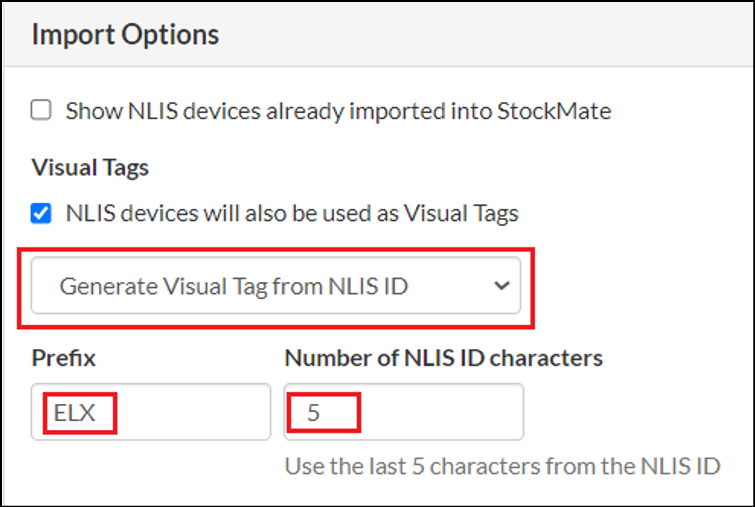

  4. Optional: Tick “NLIS devices will also be used as Visual Tags” to assign a Visual Tag to the devices.

    Follow the prompts to assign a Visual Tag to the Purchased Devices.
    OR
    Review the ‘Device Visual Tag’ column to ensure the Visual you’re applying is as desired:

  5. Select required Import Options, select/deselect required Devices, Import xx selected NLIS devices into StockMate.
  6. You will see ‘Import Successful’. Proceed to view the report if desired.

Override Device Visual Tag in a Session.

If an EID Replacement takes place in a session, the Visual Tag will automatically update to match the new device’s Visual Tag. There are some cases where users do not want the Visual Tag to change. StockMate allows for the manual override, to return the Visual Tag back to it's original value.

App Scan

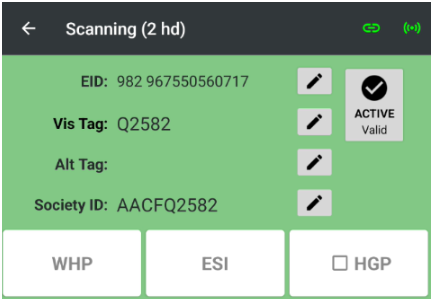

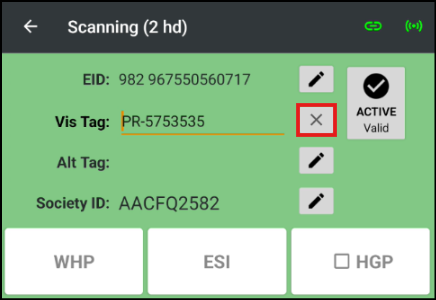

After the animal has been added to the session and EID Replacement has taken place; Device Visual Tag will be populated and show in an editable state - select the  to return Visual Tag back to it's last known value.


Web Scan

After the animal has been added to the session and EID Replacement has taken place; Device Visual Tag will be populated and show in an editable state - select the  to return Visual Tag back to it's last known value.


CSV Import

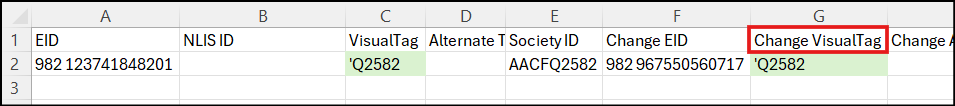

In either an Import of New Scans or Re-Importing to edit existing scans in a Session, populate the 'Change VisualTag' column with the Animals last known Visual Tag, to retain.

Report - Devices Purchased

  1. Select NLIS, Devices Purchased, Report.

  2. Select Search Criteria, Load.

    Info
    You can search by Issue and/or Used Date Range.
    Issue Date: Refers to the date the Device was issued. This date was originally provided by the NLIS database. Searching by Issue Date Range allows you to identify the devices you have purchased within that date range and downloaded to StockMate.
    Used Date: Refers to the date the device was used in StockMate (i.e. applied to an animal). A blank Used Date means the device has not yet been applied to an animal. Searching by Used Date Range allows you to identify the devices you have applied to animals. Also, knowing the number of devices not yet applied could be useful to know when to re-order more NLIS Devices.
  3. Review the report results. Download if desired.
