Setup Gallagher TW-1, TWR-1, TW-3, TWR-5 Weigh Scale (app)

Setup Gallagher TW-1, TWR-1, TW-3, TWR-5 Weigh Scale (app)

The Gallagher TW-1, TWR-1, TW-3 and TWR-5 Weigh Scale indicators can be used with the StockMate App on Android Devices.
The devices used will determine the setup procedures required and the type of information transferred to StockMate, as follows:
  1. Transfer EID and weight information using an EID Reader and the weigh scale indicator.
  2. Transfer weight information only using the weigh scale indicator.
  3. Transfer EID information only using an EID reader and the weigh scale indicator (applicable to TWR-1 and TWR-5 only).
Alert
The weigh scale indicator must be connected to the EID reader before proceeding with the setup procedure (except for weight only).
StockMate must be used to initiate the connection between the weigh scale indicator and StockMate. Do not initiate the connection in reverse.

Bluetooth: EID over Weigh Scale

The typical process of transferring EID and weight information involves:
  1. Pairing the EID reader to the weigh scale indicator so the weigh scale indicator holds EID and weight information.
  2. Setting up a Bluetooth connection between the  weigh scale indicator and the tablet so that weight and EID information is transmitted to StockMate during processing.
  3. Editing hardware configuration on the tablet and in StockMate to reflect your physical setup.
Info
The recommendation is to connect the EID reader via Weigh Scales in StockMate, and pair the weigh scale indicator via Bluetooth to the EID Device prior to continuing.
Refer to Gallagher user manual for further information.

Weigh Scale Models with Data Device Options

Some models will require the Data Device to be assigned as Input or Output. To work with StockMate the Data Device option must be Output.
Warning
Must be completed prior to attempting to connect the tablet to the Weigh Scales.
  1. From the Gallagher home screen tap the Settings Cog, Equipment Connections.
  2. Tap Data Device 1, assign as an Output device.

EID reader

Ensure the TW Weigh Scale indicator is connected to the EID reader. Refer to the Gallagher user manual if further instructions are required.

Pairing Device

  1. On the Android Tablet, pair the TW Weigh Scale indicator.
    Alert
    Do not pair the EID reader to the tablet - it should only be paired to the Weigh Scale indicator.
    1. In StockMate, from the StockMate Options Menu, tap Hardware Connections (top-right, comms icon).
    2. Tap the Bluetooth icon.

    3. Scan and select the Gallagher Weigh Scale from the Available devices list. A pairing code will be displayed on the Android device only. Accept the code.
    4. To return to Hardware Connections, use the back button on the tablet.

  2. Tap + Add Device, Weigh Scale.

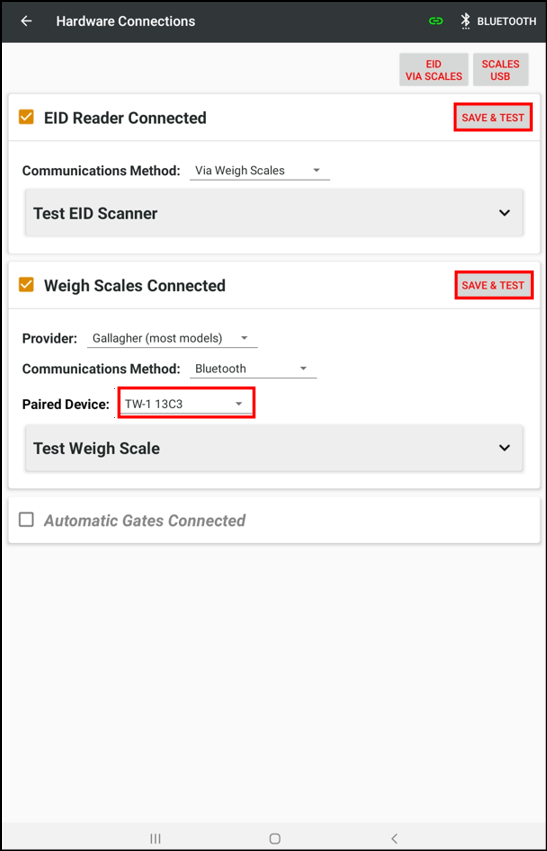

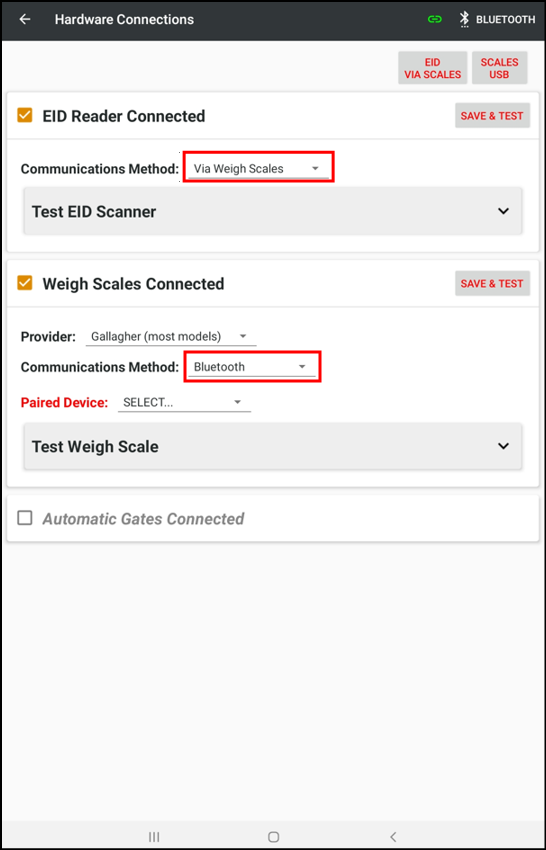

  3. Select options so the Hardware Connections screen will look like the screenshot below (Paired Device: select the device paired in step 1). Tap Save.
    Idea
    Name the device clearly for easy selection, as multiple devices can be setup within StockMate.

  4. Toggle to initiate the connection. A successful connection will be indicated by a green Bluetooth icon.
    Alert
    A successful connection must be established before proceeding.

Weigh Scale Indicator

Info
The steps for setting up the TW Weigh Scale indicator only need to be done on initial setup. After that, the scale will connect automatically unless the communications settings are deliberately changed.

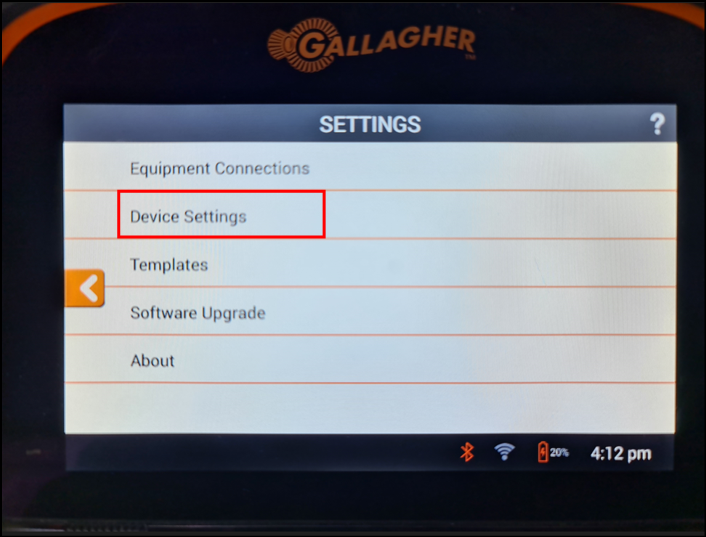

  1. Tap Settings Cog, Device Settings.
  2. Tap Bluetooth.

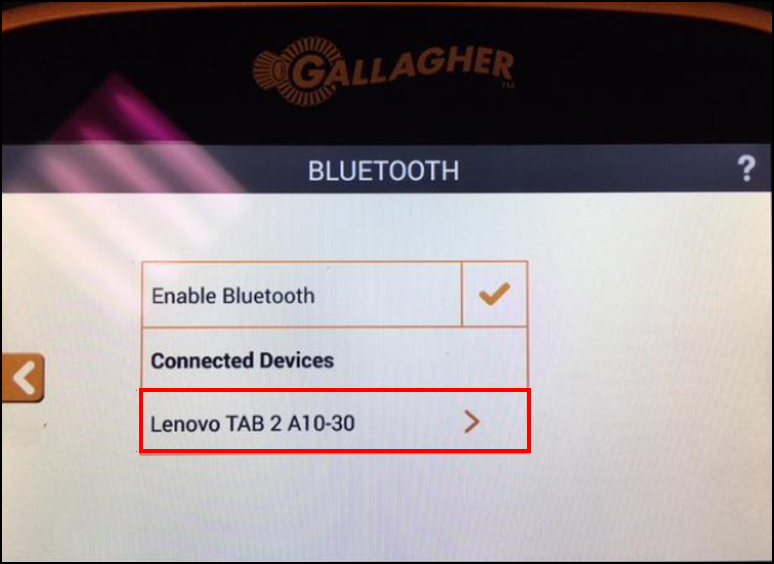

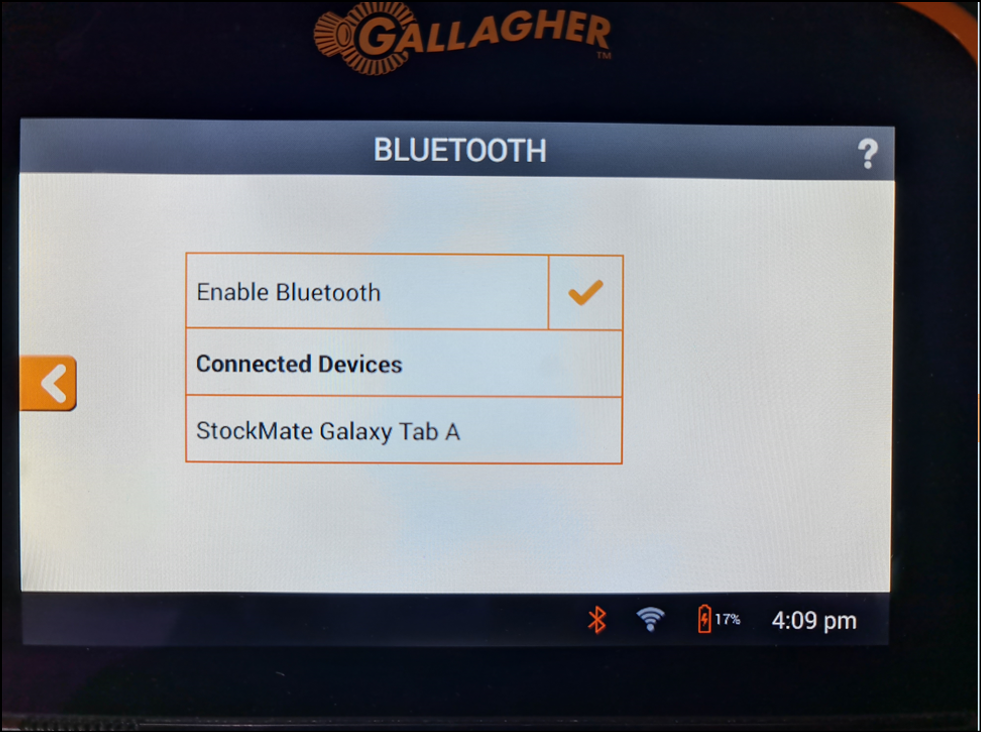

  3. The connected Android device will be visible. Tap the device name.
    Info
    If the Connected Devices section is empty, it means the connection has not been initiated in StockMate. Toggle the device to initiate the connection in the Hardware Connections screen. Refer to the "Pairing Device" above, if required.

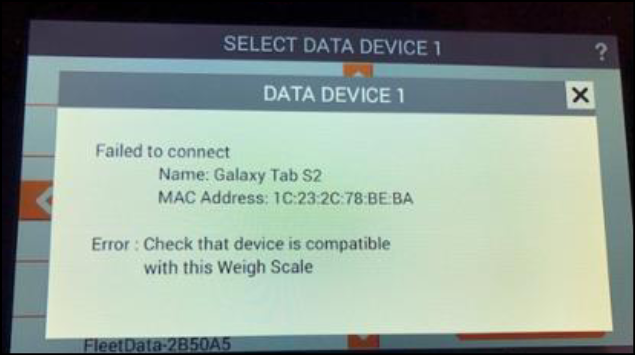

  4. When you click ‘Connect’ for the selected device, a ‘Failed to Connect’ message may appear. This is not a cause for concern. As soon as the Session in StockMate is started, the Bluetooth connection will be established.

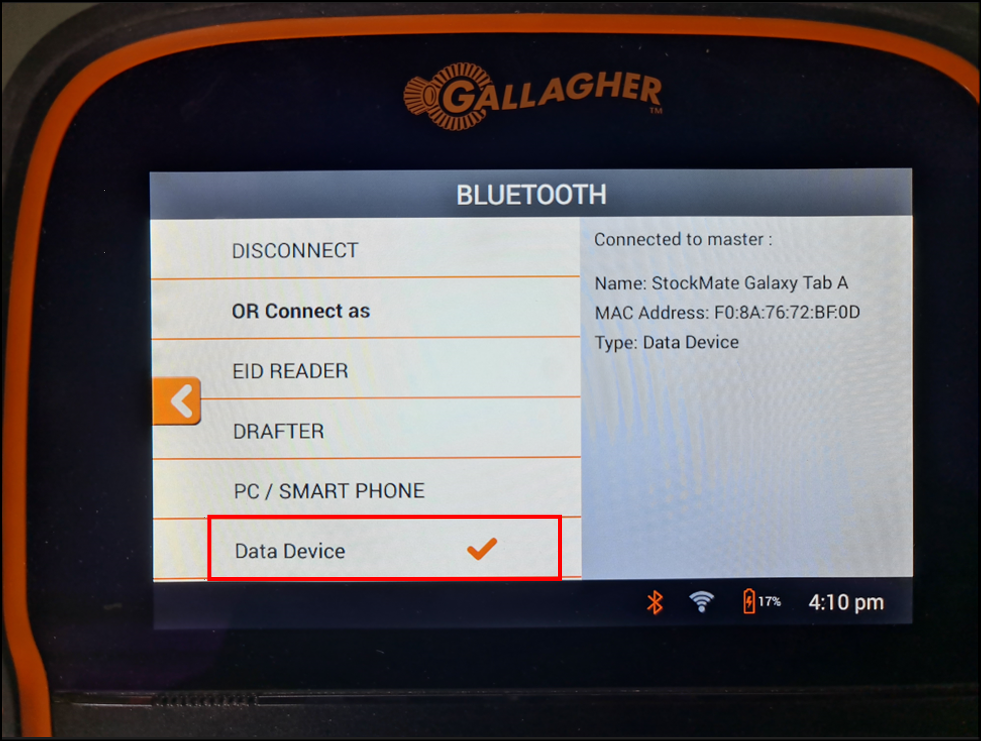

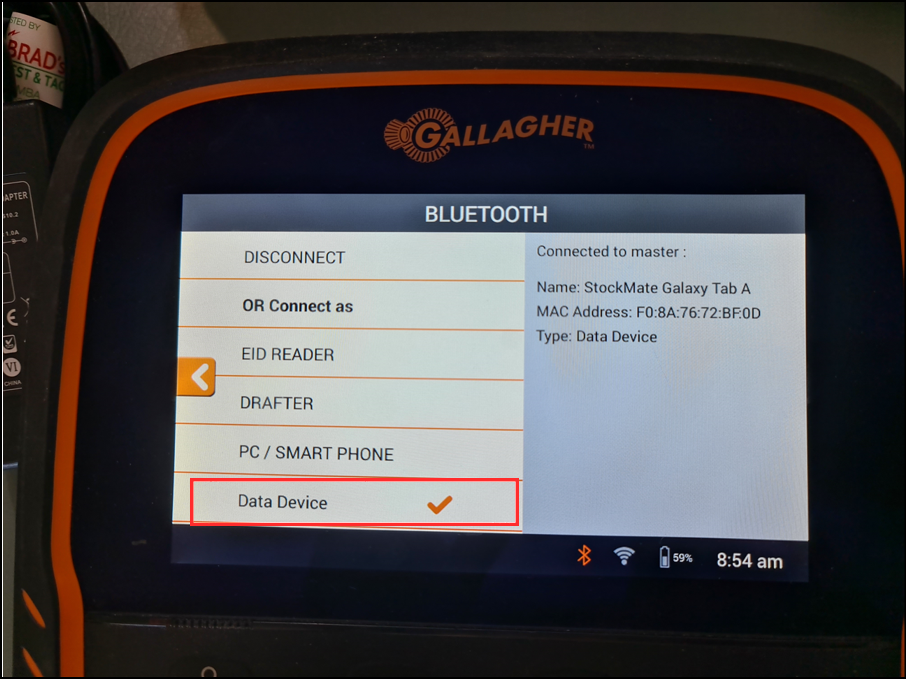

  5. Ensure the tick is against Data Device (called Data Output on some models). When first setting up it is likely to be against PC/Smart Phone since the TW Weigh Scale indicator needs to be told it will be sending data to another device.
    Info
    Some models will have multiple options: select Data Device 1 as this was previously setup as the Output port.

  6. Return to Settings, select Equipment Connections. Tap Data Device (Data Output on some models).

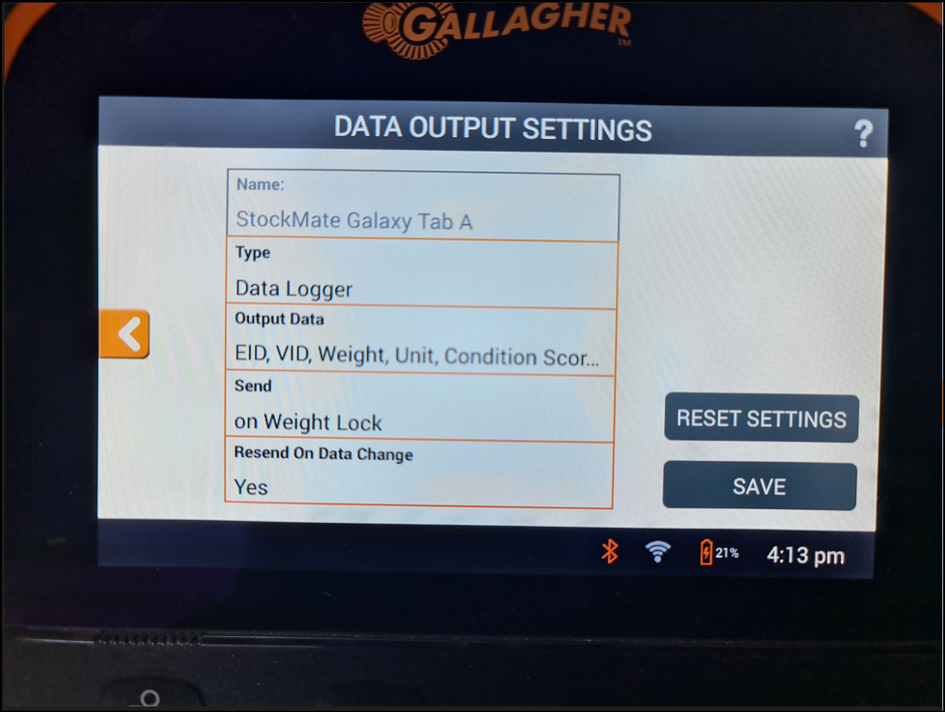

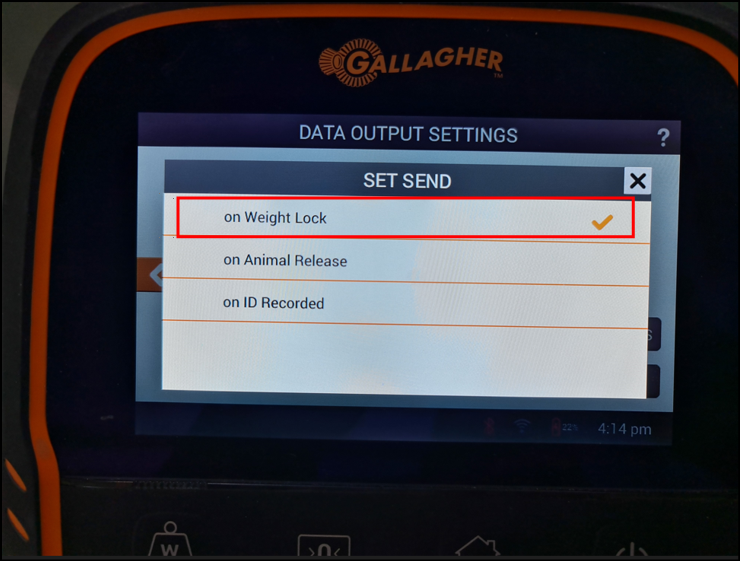

  7. In Data Output/Device Settings, ensure the Type is Data Logger. Output Data: all items should be selected. Send: On Weight Lock, Resend on Data Change: Yes.
    Info

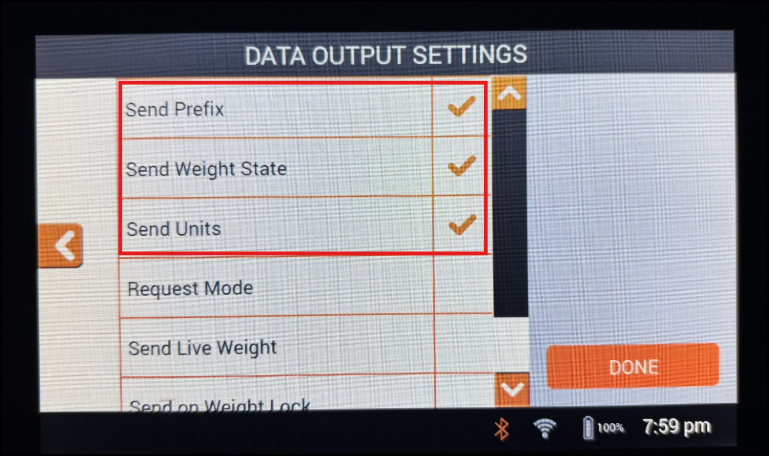

    Check Data Logger settings, ensure all items are ticked. Some devices may have NOTE unticked.

    Info
    To edit a field, tap on the field to bring up options.

StockMate Settings

  1. In StockMate, from the StockMate Options Menu, tap Hardware Connections (top-right, comms icon).

  2. Toggle the Gallagher Weigh Scale to connect.
    Info
    The Bluetooth icon will turn green when successfully connected.

  3. To test: Scan an EID, and record a weight on the Gallagher Weigh Scale indicator and it will be transferred to StockMate.

    Notes
    If data is not coming through to the Live Readings panel, it is likely the device settings are incorrect - or the connection is not established.
    For troubleshooting tap on the device, and open the console. Send test data - if everything is setup correctly the raw data will be displayed in green.
    Review error messages if applicable and action as required.

Using in a Scan Session

  1. To use in a scan session, use Hardware Connections to toggle required Devices on. Refer to Create New Scan Session – Session Setup (app) for further details.
  2. To check Hardware connections, tap Hardware Connections (top-right, comms icon), and edit if required.
    1. In StockMate, from the StockMate Options Menu, tap Hardware Connections (top-right, comms icon).

    2. Toggle the Gallagher Weigh Scales device to connect.
      Info
      The Bluetooth icon will turn green when successfully connected.

Bluetooth: Weight only

The typical process of transferring weight information only, involves:
  1. Setting up a Bluetooth connection between the TW Weigh Scale indicator and the Android tablet so that weight information is transmitted to StockMate during processing.
  2. Editing hardware configuration on the tablet and in StockMate to reflect your physical setup.

Weigh Scale Models with Data Device Options

Some models will require the Data Device to be assigned as Input or Output. To work with StockMate the Data Device option must be Output.
Warning
Must be completed prior to attempting to connect the tablet to the Weight Scales.
  1.  From the Gallagher home screen tap the Settings Cog, Equipment Connections.
  2. Tap Data Device 1, assign as an Output device.

Pairing Device

  1.  On the Android tablet, pair the TW Weigh Scale indicator.
    AlertInfo
    Do not pair the EID reader to the Weigh Scale indicator. It will require connection directly to StockMate.
    1. From the StockMate Options Menu, tap Hardware Connections (top-right, comms icon).
    2. Tap the Bluetooth icon.
    3. Scan and select the Gallagher Weigh Scale from the Available devices list. A pairing code will be displayed on the Android device only. Accept the code.
    4. To return to Hardware Connections, use the back button on the tablet.
  2. Tap + Add Device, Weigh Scale.
  3. Select options so the Hardware Connections screen will look like the screenshot below (Paired Device: select the device paired in step 1). Tap Save.
    Idea
    Name the device clearly for easy selection, as multiple devices can be setup within StockMate
  4. Toggle to initiate the connection. A successful connection will be indicated by a green Bluetooth icon.
    Alert
    A successful connection must be established before proceeding.

Weigh Scale Indicator

Info
The steps for setting up the TW Weigh Scale indicator only need to be done on initial setup. After that, the scale will connect automatically unless the communications settings are deliberately changed.
  1. On the TW Weigh Scale indicator, tap the Settings cog, Device Settings.

  2. Select Bluetooth.

  3. The connected Android device will be visible. Tap the device name.
    Info
    If the Connected Devices section is empty, it means the connection has not been initiated in StockMate. Toggle the device to initiate the connection in the Hardware Connections screen. Refer to the "Pairing Device" above, if required.

  4. When you click ‘Connect’ for the selected device, a ‘Failed to Connect’ message may appear. This is not a cause for concern. As soon as the Session in StockMate is started, the Bluetooth connection will be established.
  5. Ensure the tick is against Data Device (called Data Output on some models). When first setting up it is likely to be against PC/Smart Phone since the TW Weigh Scale indicator needs to be told it will be sending data to another device.
    Info
    Some models will have multiple options: select Data Device 1 as this was previously setup as the Output port.

  6. Return to Settings, select Equipment Connections. Tap Data Device (Data Output on some models).

  7. In Data Output/Device Settings, ensure the Type is Data Logger. Output Data: all items must be selected. Send: On Weight Lock. Resend on Data Change: Yes.
    Info
    Check Data Logger settings, ensure all items are ticked. Some devices may have NOTE unticked.
    Info
    To edit a field, tap on the field to bring up options.

StockMate Settings

  1. In StockMate, from the StockMate Options Menu, tap Hardware Connections (top-right, comms icon)
  2. Toggle the Gallagher Weigh Scale to connect.
    Alert
    EID reader needs to be paired to the Tablet and connected separately in StockMate.
    Info
    The Bluetooth icon will turn green when successfully connected.

  3. To test: Record a weight on the Gallagher Weigh Scale indicator and it will be transferred to StockMate.

    Notes
    If data is not coming through to the Live Readings panel, it is likely the device settings are incorrect - or the connection is not established.
    For troubleshooting tap on the device, and open the console. Send test data - if everything is setup correctly the raw data will be displayed in green.
    Review error messages if applicable and action as required.

Using in a Scan Session

  1. To use it in a scan session, use Hardware Connections to toggle required Devices on. Refer to Create New Scan Session – Session Setup (app) for further details.
  2. To check Hardware connections, tap Hardware Connections (top-right, comms icon), and edit if required.
    1. From the StockMate Options Menu, tap Hardware Connections (top-right, comms icon).
    2. Toggle the Gallagher Weigh Scales device to connect.
      Info
      The Bluetooth icon will turn green when successfully connected.

Bluetooth: EID only (TWR-1 and TWR-5 only)

These settings can be used for TWR-1 and TWR-5 when a scan only session is being completed (no weights being captured). The typical process of transferring EID information only, involves:
  1. Connecting the EID reader to the TWR Weigh Scale indicator so that the weigh scale indicator is holding EID information.
  2. Setting up a Bluetooth connection between the TWR Weigh Scale indicator and the Android tablet, so that EID information is transmitted to StockMate during processing.
  3. Editing hardware configuration on the tablet and in StockMate to reflect your physical setup.

Weigh Scale Models with Data Device Options

Some models will require the Data Device to be assigned as Input or Output. To work with StockMate the Data Device option must be Output.
Warning
Must be completed prior to attempting to connect the tablet to the Weigh Scales.
  1. From the Gallagher home screen tap the Settings Cog, Equipment Connections.
  2. Tap Data Device 1, assign as an Output device.

EID reader

Ensure the TWR Indicator is connected to the EID reader, refer to Gallagher manual for steps.
Info
For the TWR-1/5, the EID only option is required when the only EID reader on hand is the “TWR-x” inbuilt EID reader, because the EID reader cannot connect to anything else.

Pairing Device

  1. On the Android tablet, pair the TW Weigh Scale indicator.
    1.  From the StockMate Options Menu, tap Hardware Connections (top-right, comms icon).
    2. Tap the Bluetooth icon.
    3. Scan and select the Gallagher Weigh Scale from the Available devices list. A pairing code will be displayed on the Android device only. Accept the code.
    4. To return to Hardware Connections, use the back button on the tablet.
  2. Tap + Add Device, Panel Reader.

  3. Select options so the Hardware Connections screen will look like the screenshot below (Paired Device: select the device paired in step 1). Tap Save.
    Info
    Name the device clearly for easy selection, as multiple devices can be setup within StockMate.

  4. Toggle to initiate the connection. A successful connection will be indicated by a green Bluetooth icon.
    Alert
    A successful connection must be established before proceeding.

TWR Weigh Scale indicator

Info
The steps for setting up the TW Weigh Scale indicator only need to be done on initial setup. After that, the scale will connect automatically unless the communications settings are deliberately changed.
  1. On the TWR Weigh Scale indicator, tap the Settings cog to take you to Settings. Tap Device Settings.

  2. Tap Bluetooth.

  3. The Android device will be visible under Connected Devices. Tap the device name.
    Info
    This will still be empty if you have not initiated the connection in StockMate. Toggle the device to initiate the connection in the Hardware Connections screen. Refer to the "Pairing Device" above, if required.

    Info
    When you click ‘Connect’ for the selected device, you may see a ‘Failed to Connect’ message. This is not a cause for concern. When a Session is started in StockMate the Bluetooth connection will be established.

  4. Ensure the tick is against Data Output (called Data Device on some models). When first setting up it is likely to be against PC/Smart Phone  since the TWR Weigh Scale Indicator needs to be told it will be sending data to another device.
    Info
    Some models will have multiple options: select Data Device 1 as this was previously setup as the Output port.


  5. Return to Settings, tap Equipment Connections. Tap Data Output (Data Device on some models).

  6. In Data Output/Device Settings, Ensure: Output Data: EID, Send: ID Recorded, Resend on Data Change: Yes. Save.
Info
To edit a field, tap on the field to bring up options.

StockMate Settings

  1. From the StockMate Options Menu, tap Hardware Connections (top-right, comms icon).
  2. Toggle the Gallagher Device to connect.
    Info
    The Bluetooth icon will turn green when successfully connected.

  3. To test: Scan an EID on the Gallagher Device and it will be transferred to StockMate.

    Notes
    If data is not coming through to the Live Readings panel, it is likely the device settings are incorrect - or the connection is not established.
    For troubleshooting tap on the device, and open the console. Send test data - if everything is setup correctly the raw data will be displayed in green.
    Review error messages if applicable and action as required.

Using in a Scan Session

  1. To use it in a scan session, use Hardware Connections to toggle required Devices on. Refer to Create New Scan Session – Session Setup (app) for further details.
  2. To check Hardware connections, tap Hardware Connections (top-right, comms icon), and edit if required.
    1. From the StockMate Options Menu, tap Hardware Connections (top-right, comms icon).
    2. Toggle the Gallagher Weigh Scales device to connect.
      Info
      The Bluetooth icon will turn green when successfully connected.
