Setup Tru-Test S3 Weigh Scale (app)

Setup Tru-Test S3 Weigh Scale (app)

The Tru-Test S3 is a bluetooth low energy (BLE) Weight Scale device, that can output weight data to the StockMate App on Android Devices. As the S3 can send weight only, a separate device will be required for sending EID information to StockMate. Refer to the Hardware Connections Overview (app) for further information.

Info
Before use, check that the Weigh Scale indicator has the latest firmware installed. Contact the manufacturer for detail.

Bluetooth: Weight Only

Pairing Device

  1. On the Android Tablet, pair the Tru-Test Weigh Scale Indicator.
    1. From the StockMate Options Menu, tap Hardware Connections (top-right, comms icon).
    2. Tap the Bluetooth icon.
    3. Scan and select the Tru-Test Weigh Scale from the Available devices list. A pairing code will be displayed on the Android device only. Accept the code.
    4. To return to Hardware Connections, use the back button on the tablet.

StockMate Settings

  1. From the StockMate Options Menu, tap Hardware Connections (top-right, comms icon).
  2. Tap +Add Device, Weigh Scale.

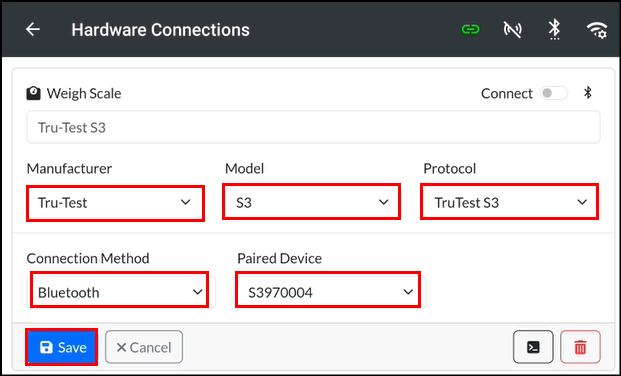

  3. Select options so the Hardware Connections screen will look like the screenshot below (Paired Device: select the device paired above). Tap Save.
    Idea
    Name the device clearly for easy selection, as multiple devices can be setup within StockMate.

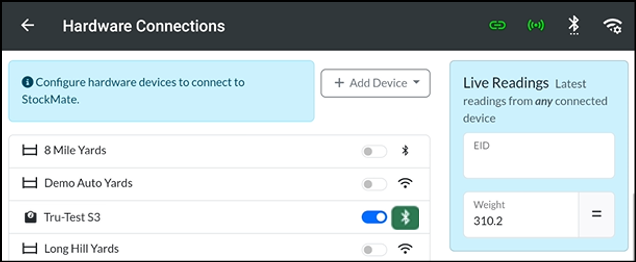

  4. Toggle to initiate the connection. A successful connection will be indicated by a green Bluetooth icon. Tap Close.
  5. To test: Record a weight on the Tru-Test S3 Weigh Scale indicator and it will be transferred to StockMate.

    Notes
    If data is not coming through to the Live Readings panel, it is likely the device settings are incorrect - or the connection is not established.
    For troubleshooting tap on the device, and open the console. Send test data - if everything is setup correctly the raw data will be displayed in green.
    Review error messages if applicable and action as required.

Using In a Scan Session

To use in a scan session, use Hardware Connections to toggle required Devices on. Refer to Create New Scan Session – Session Setup (app) for further details.
InfoAn EID reader will also be required to scan animals into StockMate. See Hardware Connections Overview (app) for more information.
To check Hardware connections, tap Hardware Connections (top-right, comms icon), and edit if required.

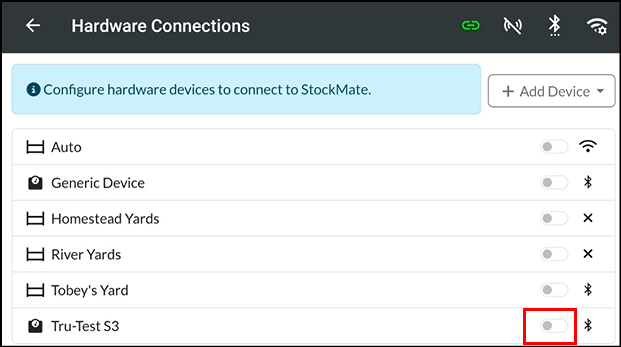

  1. From the StockMate Options Menu, tap Hardware Connections (top-right, comms icon).
  2. Toggle the Tru-Test S3 Weigh Scales device to connect.
    Info
    The Bluetooth icon will turn green when successfully connected.
