Setup UTAGS TagScan R2 (app)

Setup UTAGS TagScan R2 (app)

Proud Partners in software integration, Australian owned UTAGS, offer hardware devices to scan custom electronic identification tags, to help reduce time on a number of stock management practices (scanning, processing etc) to maximise the well-being of livestock and staff.
The TagScan R2 has the ability to scan an NLIS device while scanning a UTAGS custom Visual Tag in quick succession to a StockMate Session, making identification logging in Branding and Induction (Arrival) Sessions, more streamlined.
For more information on UTAGS please visit https://www.utags.com.au

Bluetooth: EID only

StockMate Settings

  1. From the StockMate Options Menu, tap Hardware Connections (top-right, comms icon).
  2. Tap + Add Device, Handheld Reader.

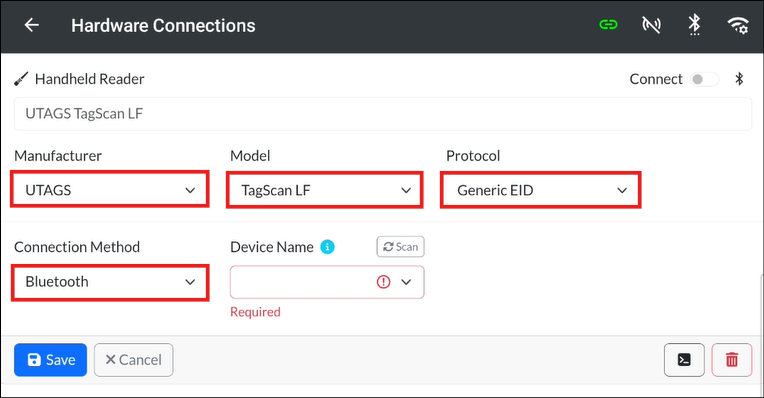

  3. Select options so the Hardware Connections screen will look like the screenshot below.
  4. Ensure power supply is plugged into the TagScan R2s USB-A power outlet. Hardware will be powered ON.

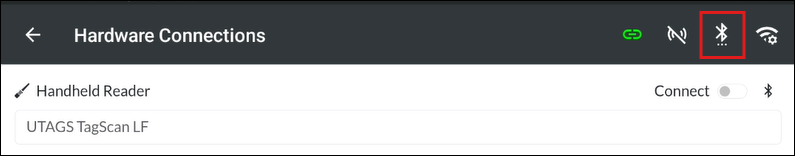

    1. Tap the Bluetooth icon.

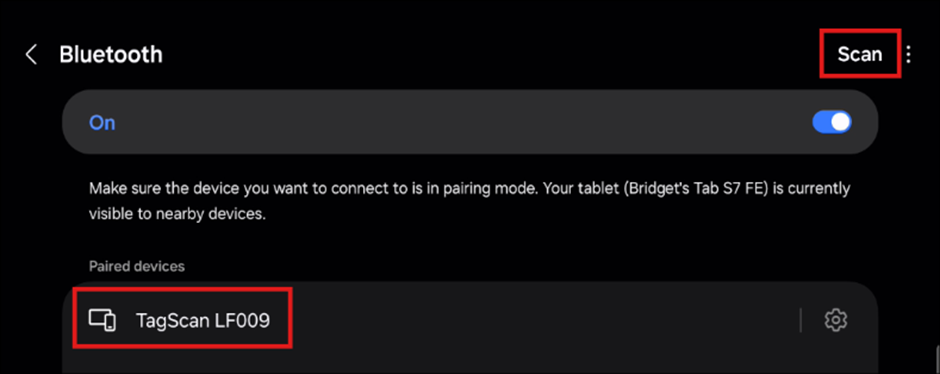

    2. Scan for nearby Bluetooth devices and select the TagScan LFxxx from Available devices to Pair. Device will then be listed under Paired devices.
      Tap back from the bottom task bar to return to StockMate.

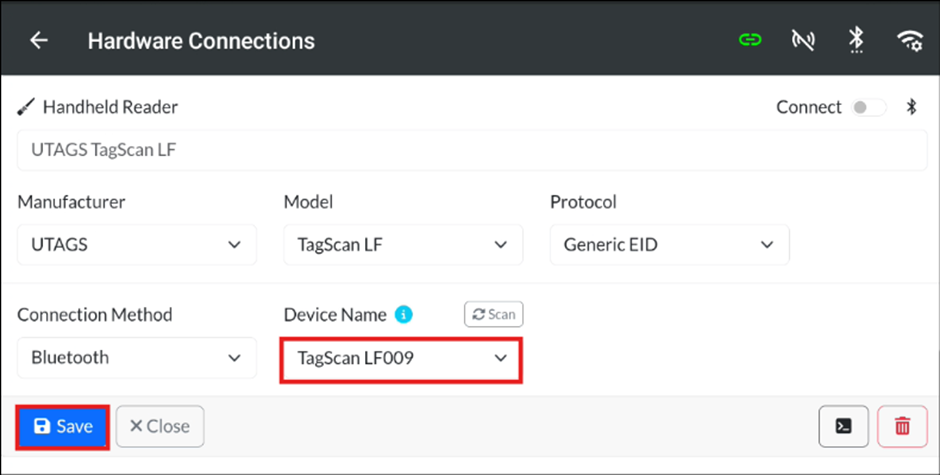

  5. Select the Paired device from the Device Name dropdown and Save.

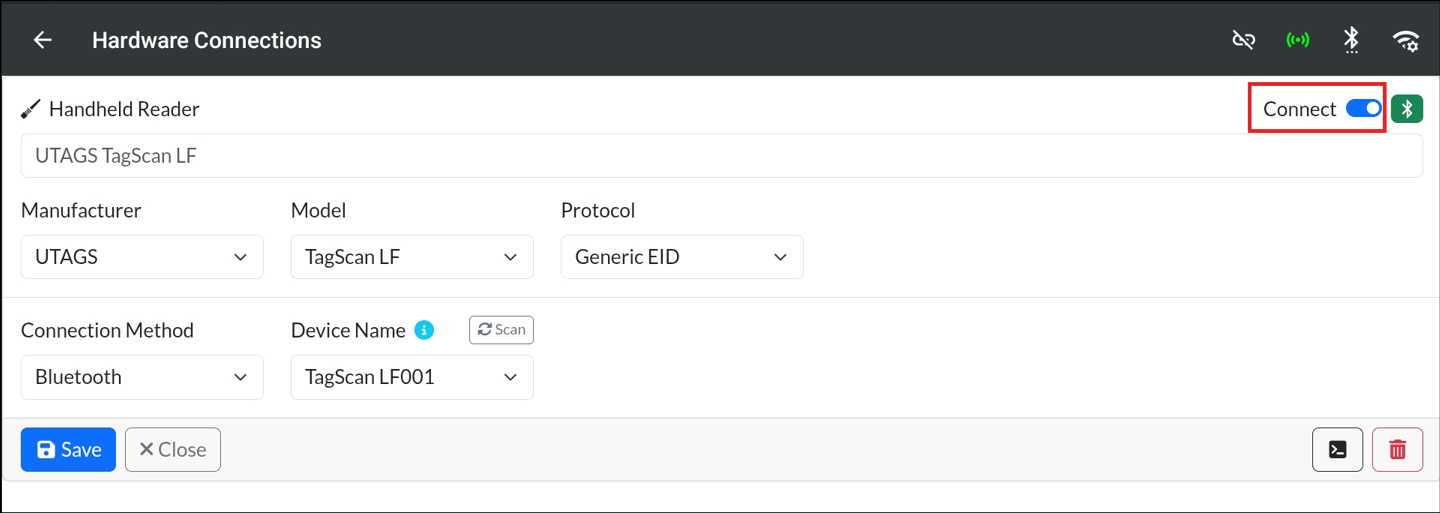

  6. Toggle to initiate the connection. A successful connection will be indicated by a green Bluetooth icon.

    Alert
    A successful connection must be established before proceeding.

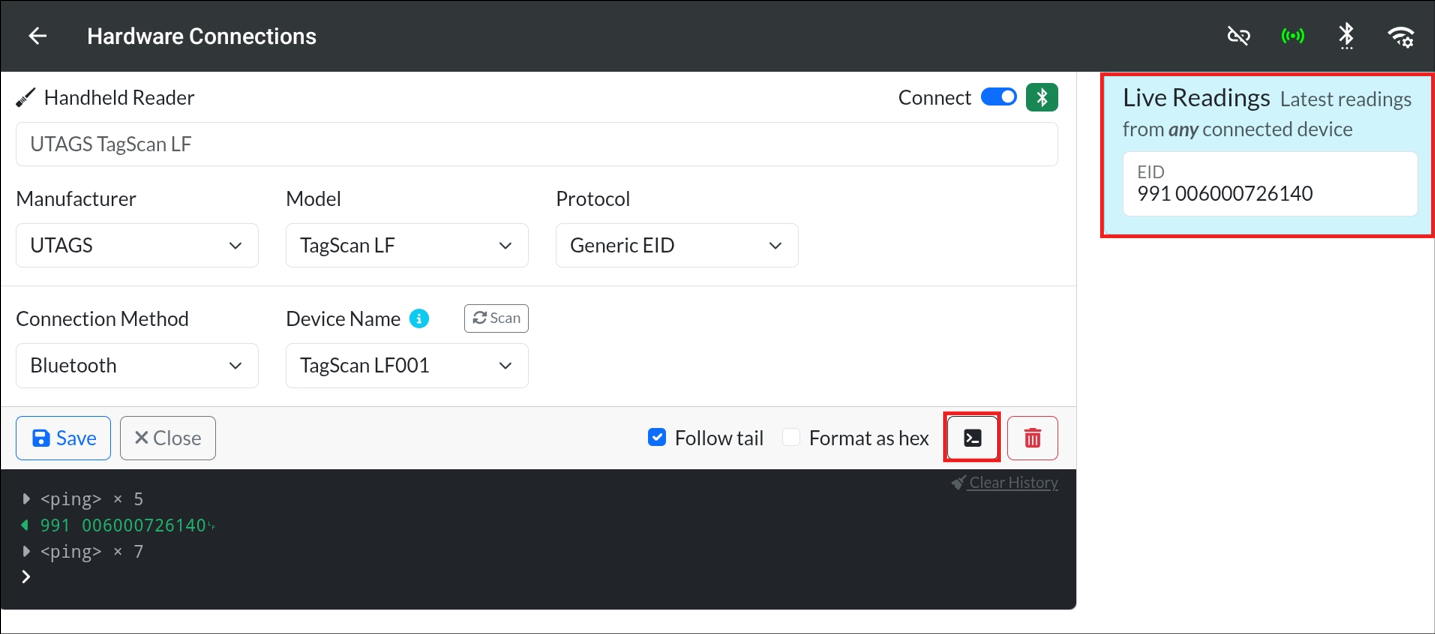

  7. Scan an NLIS button to test successful connection. EID will populate Live Readings.
    To assist with device connection troubleshooting, tap the console button the view send/receive data.

Bluetooth: UHF Visual Tag only

StockMate Settings

  1. From the StockMate Options Menu, tap Hardware Connections (top-right, comms icon).

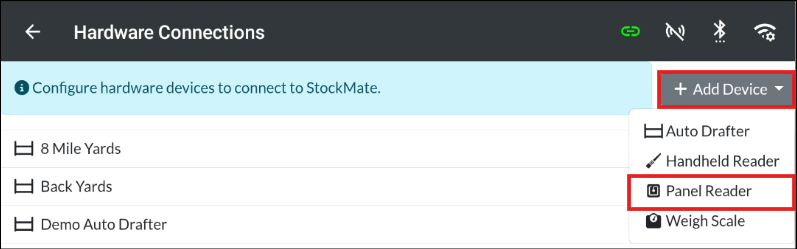

  2. Tap + Add Device, Panel Reader.

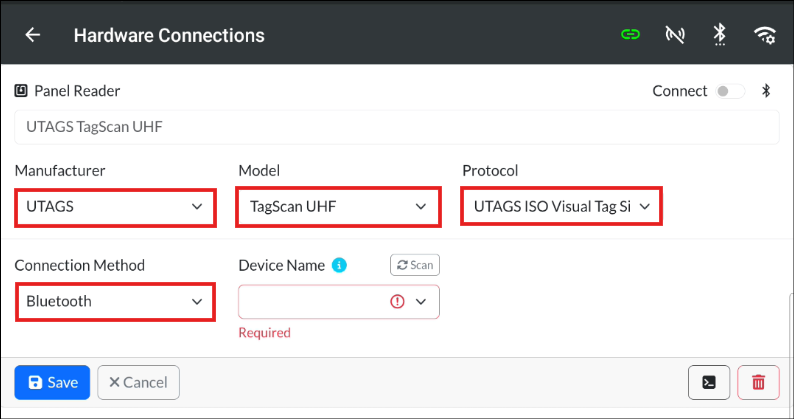

  3. Select options so the Hardware Connections screen will look like the screenshot below.
  4. Ensure power supply is plugged into the TagScan R2s USB-A power outlet. Hardware will be powered ON.

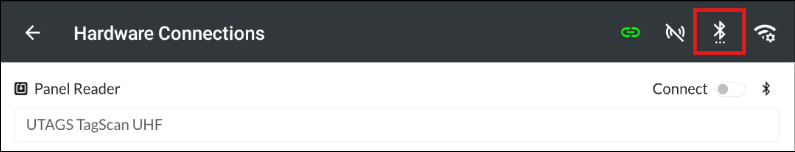

    1. Tap the Bluetooth icon.

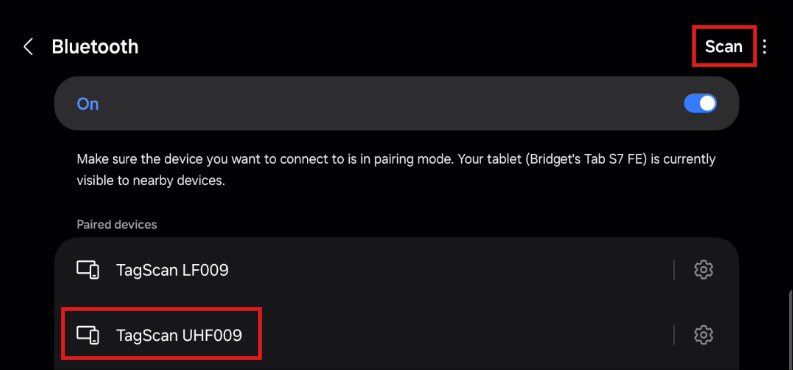

    2. Scan for nearby Bluetooth devices and select the TagScan UHFxxx from Available devices to Pair. Device will then be listed under Paired devices.
      Tap back from the bottom task bar to return to StockMate.

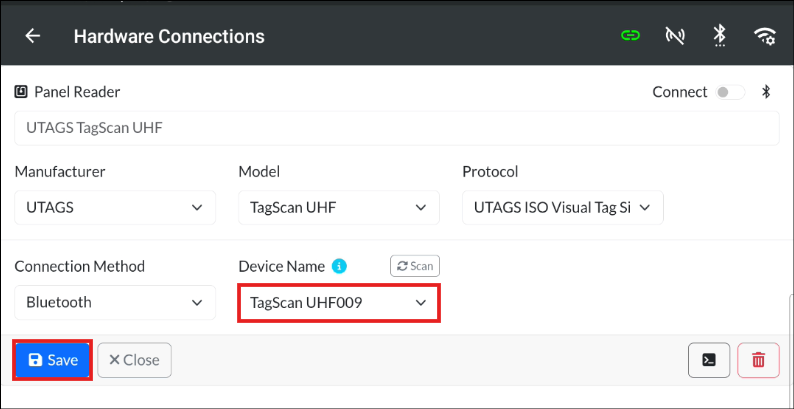

  5. Select the Paired device from the Device Name dropdown and Save.

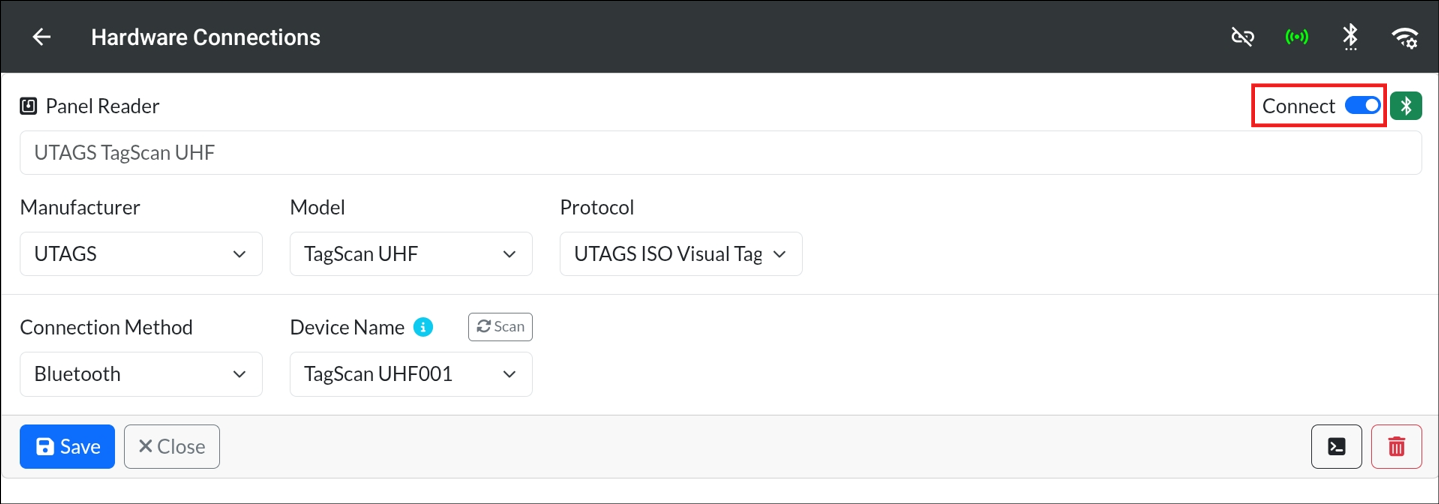

  6. Toggle to initiate the connection. A successful connection will be indicated by a green Bluetooth icon.
    Alert
    A successful connection must be established before proceeding.

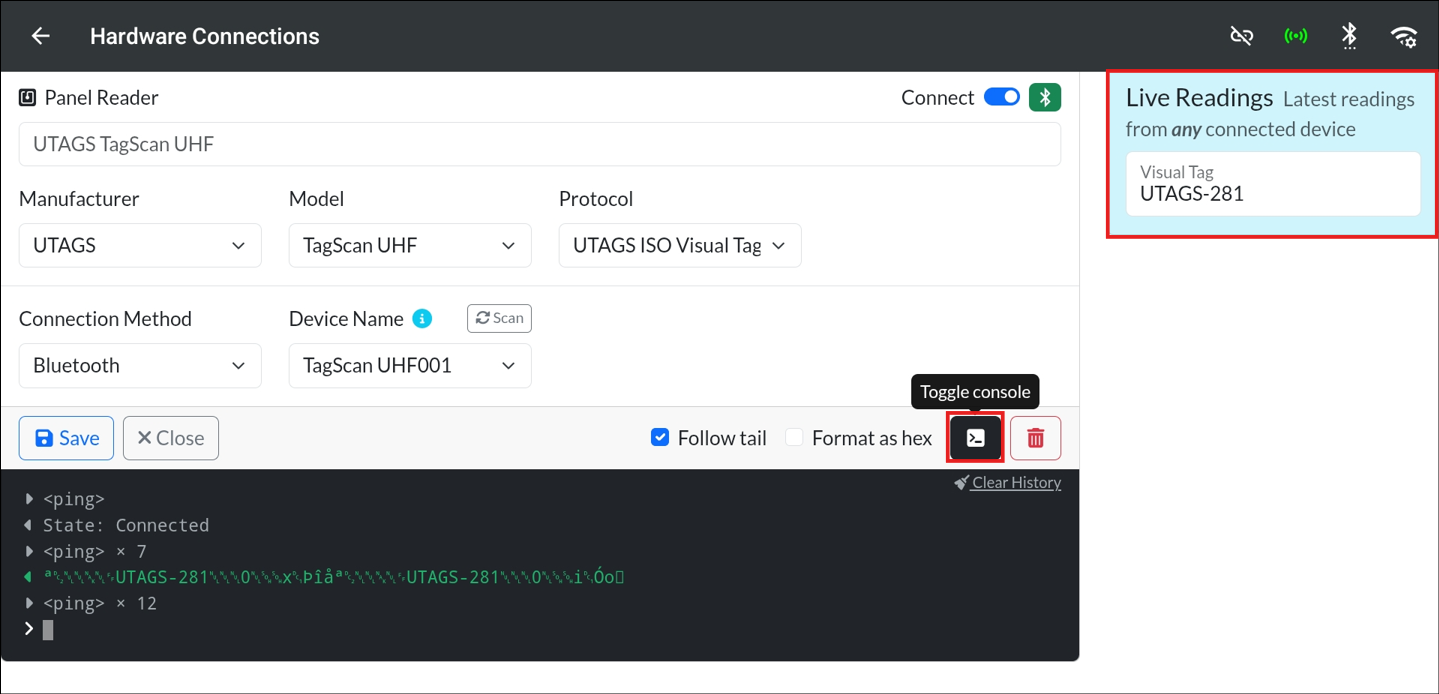

  7. Scan a UHF Visual Tag to test successful connection. Visual Tag will populate Live Readings.
    To assist with device connection troubleshooting, tap the console button the view send/receive data.

Using in a Scan Session

To use in a scan session, use Hardware Connections to toggle required Devices on.
Toggle ON connection of the TagScan R2 Handheld device to be able to send EIDs to a StockMate Session and Toggle ON connection of the TagScan R2 Panel Reader to also populate Visual Tag detail in a StockMate Session.
  1. In StockMate, from the StockMate Options Menu, tap Hardware Connections (top-right, comms icon).

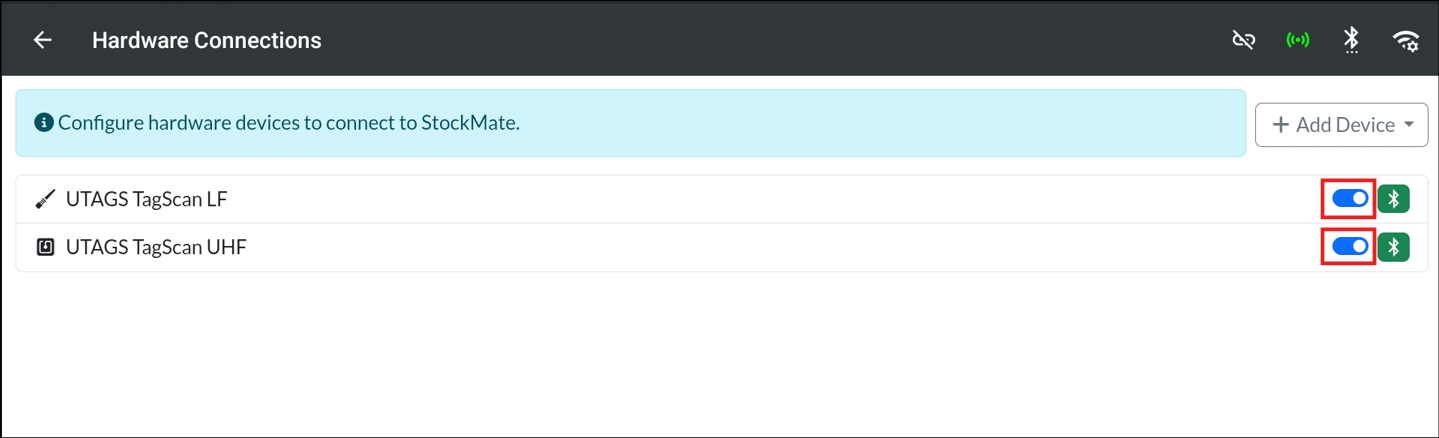

  2. Toggle the TagScan R2 devices required for your session, to connect.
